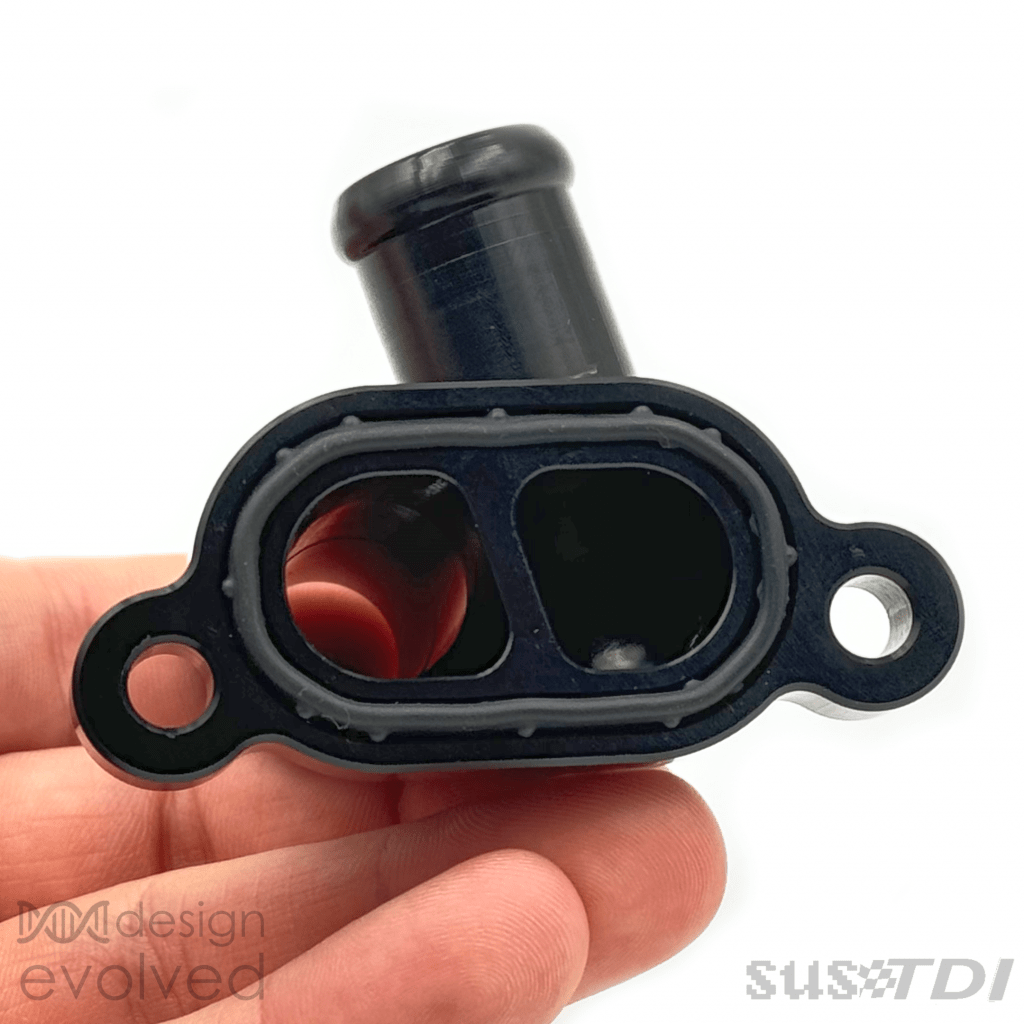

Billet Intermediate Flange “Evo”
Replace the weak factory nylon flange with a lifetime billet upgrade. SUS TDI “Evo” flange is a plug-in, OE-geometry piece for Gen 2 3.0 TDI coolant routing when the EGR cooler is removed—clean fit, fewer leak points, and no intake-manifold teardown.
Highlights
CNC-machined 6061 billet with anodized finish
OE-matched seal gland and hose angles for factory-quality fit

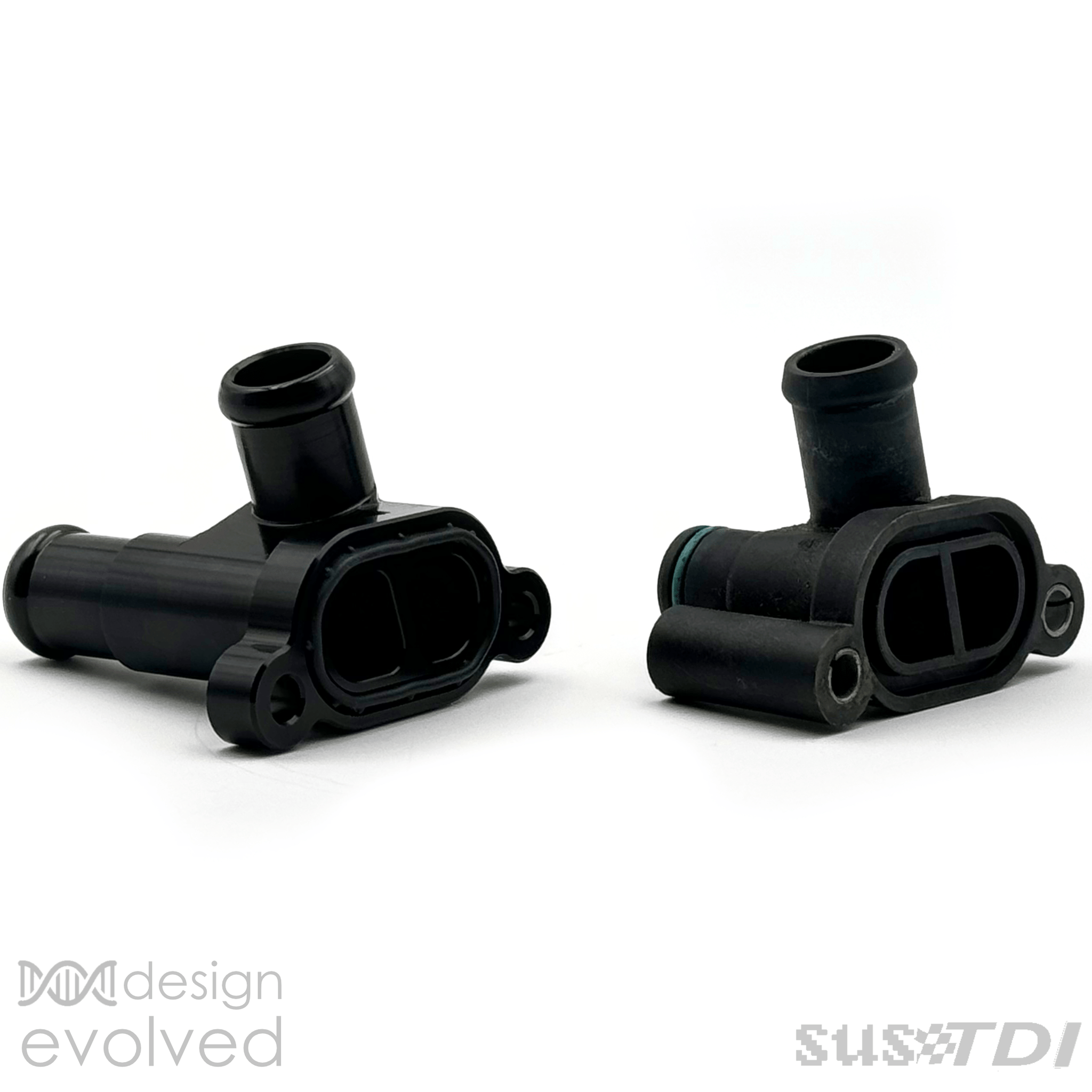

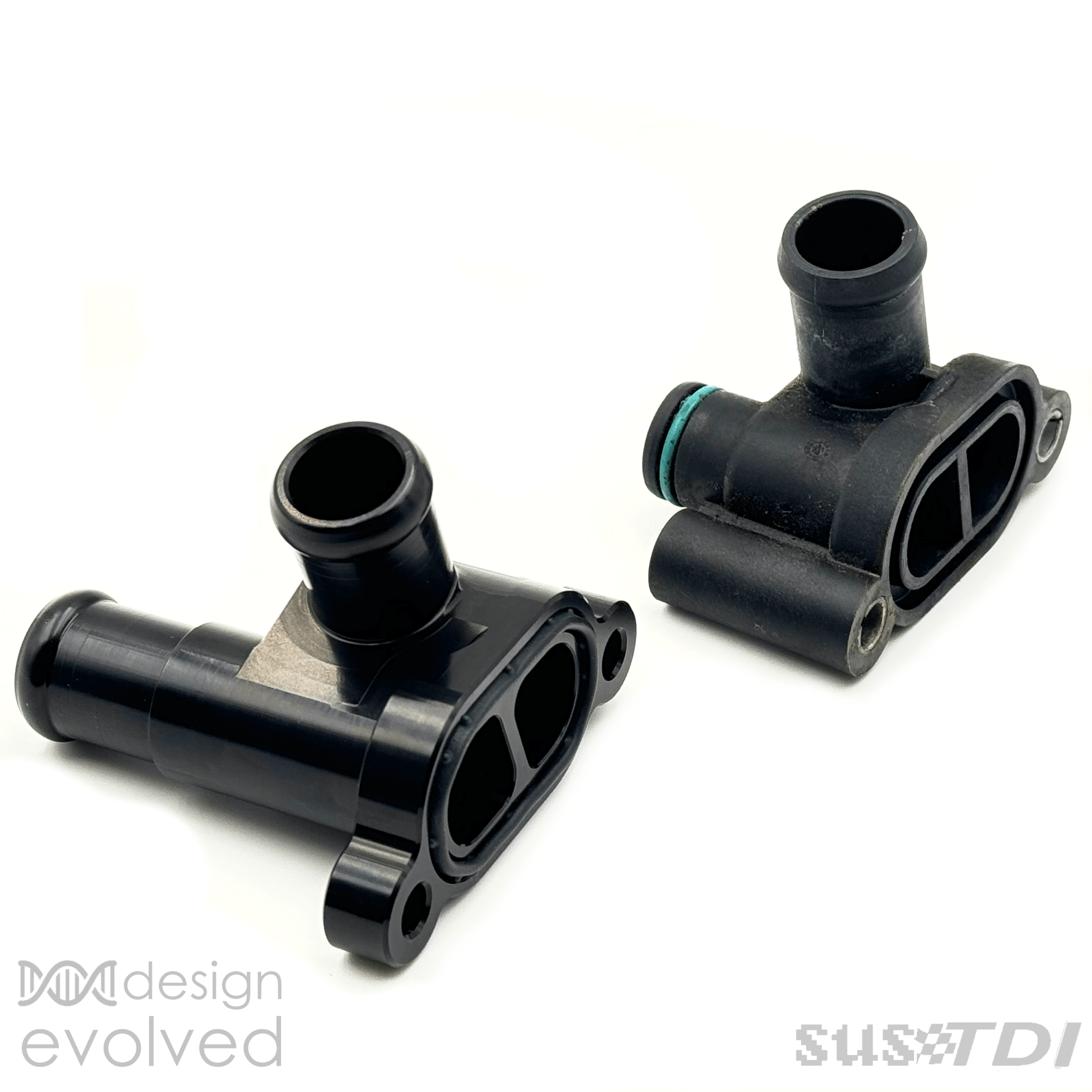

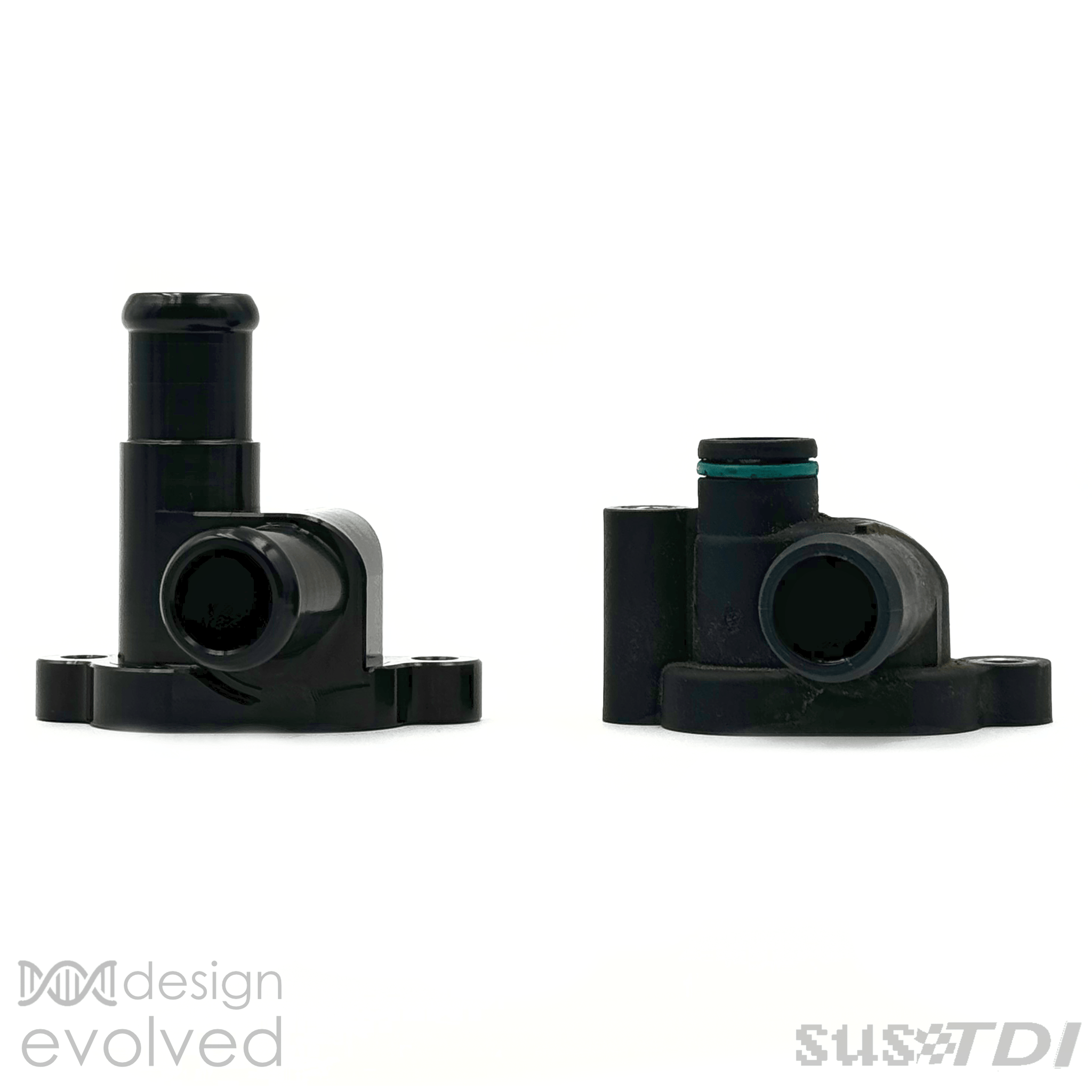

Eliminates crack-prone plastic and extra sleeve fittings
Works with stock or delete bypass valve in EGR-delete setups
Fitment / Notes
Gen 2 3.0 TDI (2013–2016). For EGR-delete configurations only; not compatible with a reinstated stock EGR cooler.
Replaces OE 059121506H.
What’s Included
Billet intermediate flange
OEM VAG seal
2 × Genuine VAG M6×16 bolts (one spare)
Torque spec: 9 Nm
Country of Origin
Flange: USA | Bolts: Germany | Seal: Germany
